Three-Dimensional Deep Hole Drilling Machine

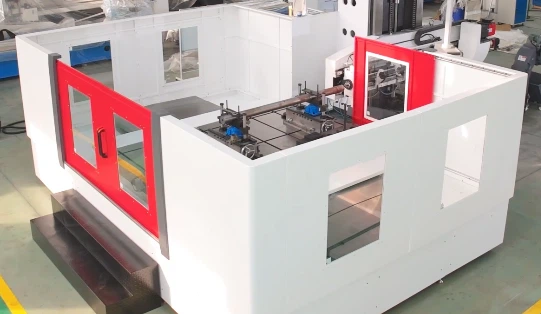

Machine overview

Drilling method: gun drilling method.

Drilling diameter range: Φ4-Φ30mm

Maximum drilling depth:1000mm



Machine performance

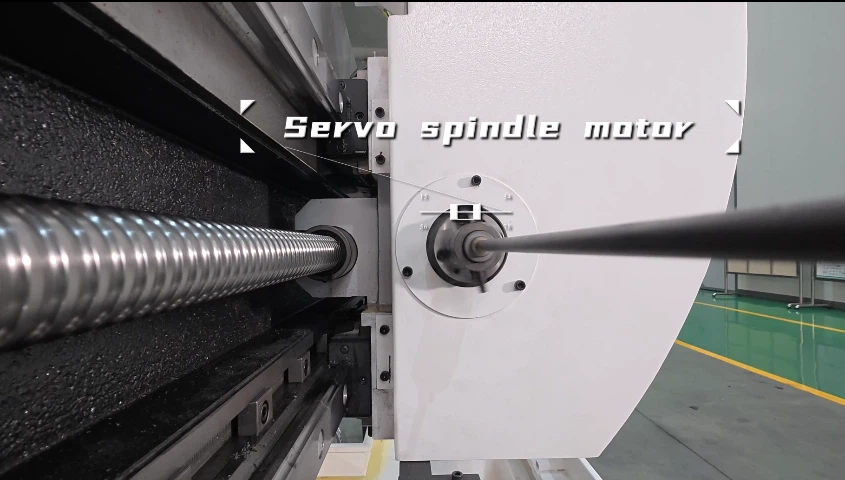

The spindle of the drill box is driven by a variable-frequency motor via timing belt and pulley, realizing stepless speed regulation. Main motor power: 5.5kW, maximum spindle speed: 6000r/min. A Korean rotary joint is adopted at the rear end of the drill box spindle.



X-axis and Y-axis adopt rectangular guideways;

X-axis and Y-axis adopt the structure of servo motor + reduction mechanism + ball screw, supporting stepless speed regulation.

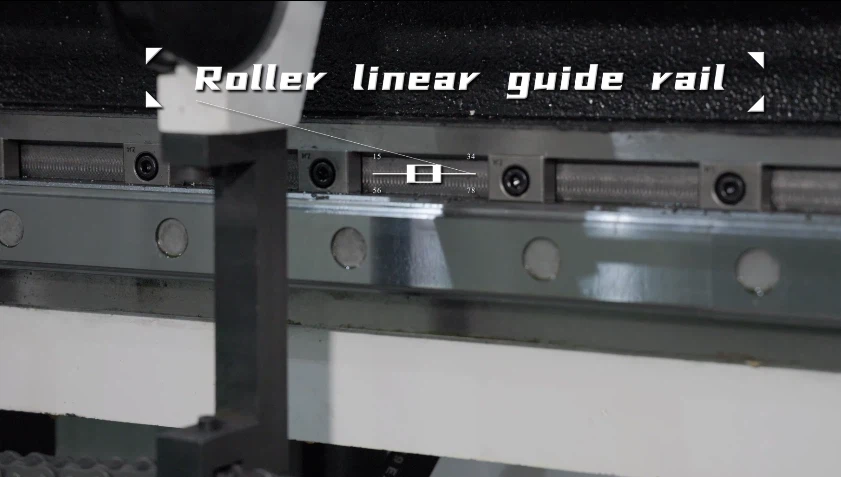

Z-axis adopts Taiwan HIMIN linear guideways with sealed slide blocks.

Z-axis adopts the structure of servo motor + elastic coupling + ball screw, supporting stepless speed regulation.

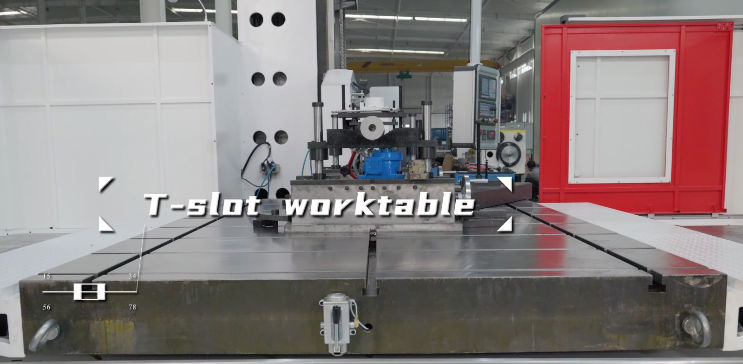

The machine is equipped with a T-slot worktable. Telescopic protection is fitted at the worktable position.

The guide carriage can move axially by 50 mm controlled by the pneumatic system, to clamp and release the workpiece. It functions in tool guiding, pin retraction and oil return.



Cooling system

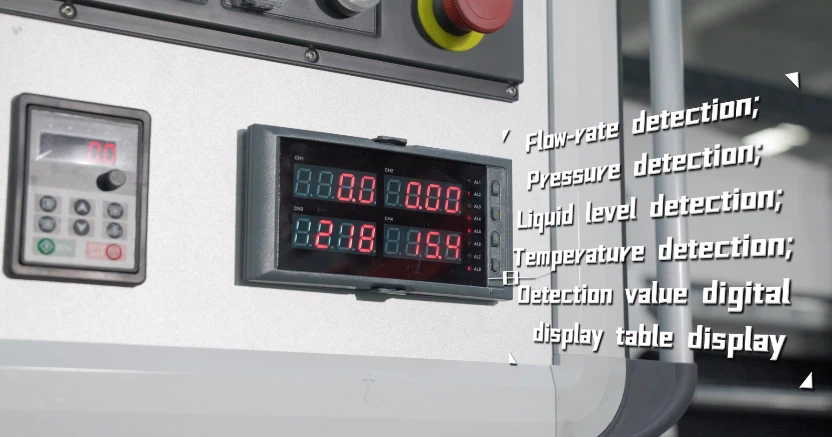

The cooling system is composed of dirty oil tank, clean oil tank, circulation pump, paper band filter, high-pressure pump unit and liquid level controller, chip conveyor, etc. The cutting oil pressure and flow can be adjusted according to the hole diameter, with real-time pressure value display.

An oil return groove is designed on the machine bed, ensuring all cutting oil flows back to the cooling oil tank.



Control system

The CNC system adopts GSK CNC system.

Video link for this machine: https://youtu.be/sp2AzvCpPDY



Machining Accuracy

Hole straightness deviation: 1mm/1000mm

Surface roughness: Ra 0.8-3.2 μm

Hole diameter tolerance: IT7-IT11

Machine Standard Configuration

GSK CNC system, manual pulse generator, drill bar support rest, scraper chip conveyor, central lubrication station, special cooling system, warning light, adjusting tools, working lamp, machine leveling pads, oil temperature controller, machine protective cover, hydraulic system, etc.

6. Machine Optional Configuration

Gun drill tools, accessories, cutting oil, tool grinding machine, sharpening device, oil slinger, magnetic chip conveyor, electrical cabinet air conditioner, other brands of CNC systems, etc.

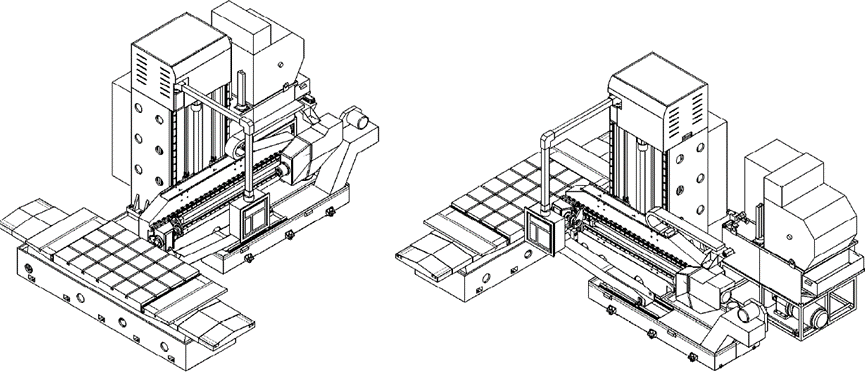

7. Machine Appearance Drawing
