CNC Deep Hole Drilling And Boring Machine For Twin Barrel Hole
The main purpose of the machine tool and the general arrangement The machine tool is specialized in machining cylindrical shapes, with strong rigidity of the machine bed and good accuracy retention. It can be adapted to the internal hole machining of large workpieces. The spindle speed range is wide, and the feeding system is driven by AC servo motor, which can adapt to the needs of various deep hole machining processes. It is most suitable for screw injection moulding machine and other industry processing. Centre drilling, eccentric drilling and twin barrel drilling possible.
Description
Processing capacity
Drilling range：Φ30～Φ120 mm
Boring range: Φ40～Φ200mm
Max. machining depth：4m
Max. workpiece length: 4m
Machine functions
Drilling , Boring .
Drilling: BTA drilling method with backward chip evacuation through the tool shank.
Boring: Push Boring (or Pull boring) method, chip removal forward through the bottom hole of the workpiece.
Machine tool machining mode: workpiece rotates, tool rotates and feeds; workpiece rotates, tool does not rotate, tool feeds.
|
Specification |
Parameters |
Remark |
||
|
Working capacity |
Drilling diameter range |
Φ30~Φ120mm |
/ |
|
|
Boring diameter range |
Φ40~Φ200mm |
/ |
||
|
Max. processing depth |
500~4000mm |
/ |
||
|
Workpiece length range |
Φ500~Φ4000mm |
/ |
||
|
Machine features |
Z1 axis (Feeding carrier) |
Feeding speed range |
0.5~1000mm/min |
stepless |
|
Servo motor |
35Nm |
/ |
||
|
Z2 axis (Oil pressure head movement) |
Rapid move speed |
3000mm/min |
/ |
|
|
Servo motor torque |
27Nm |
/ |
||
|
Drill box |
Rotary speed range |
50~500r/min |
Manual 12-speed speed control |
|
|
Motor power |
30KW |
|
||
|
Gear level |
Manual 12-speed speed control |
|||
|
Headstock |
Rotary speed range |
4~440r/min |
Manual 3-speed, stepless speed regulation within the gears |
|
|
Motor power |
45KW |
Servo spindle motor |
||
|
Spindle front taper hole |
Metric 140 |
|||
|
chuck |
Φ630mm(Manual 4-jaw) |
|||
|
|
Others |
Height from spindle center to top of guideway |
625mm |
/ |
|
Max. swivel diameter on the bed |
Φ1250mm |
/ |
||
|
Clamping diameter range of center frame |
Φ100～Φ650mm |
/ |
||
|
Total power of the machine |
120KW |
/ |
||
|
Load capacity |
10 tons |
/ |
||
|
Machine floor space |
16.5m×3.8m |
/ |
||
|
Machine weight (approx.) |
25 tons |
/ |
||
|
Coolant system |
Max. pressure |
2.5MPa |
/ |
|
|
Max. flow |
800L/min |
/ |
||
|
Cooling motor power |
11KW, 3 groups |
/ |
||

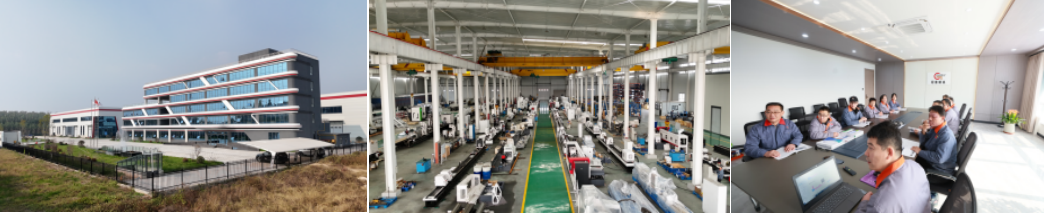

Company Profile
Guanlu Precision Machinery Manufacturing Co., Ltd.
Established in 2011, Guanlu Precision is a supplier specializing in the manufacturing of high-end precision machinery equipment and solutions. We are committed to providing global industrial clients with high-performance and highly reliable products.
Core Strengths:
1. Strong Manufacturing Capabilities
Equipped with over 40 advanced machining devices, including a German 12-meter Heckert guideway grinder, a Japanese 10-meter SNK 5-face milling machine, and large-scale gantry planers, enabling us to handle large, complex, and precision components.
2. Strict Quality Assurance System
Fully complies with the ISO9001 Quality Management System.
Implements comprehensive quality control throughout the entire process: from professional R&D and a stable supply chain to inspection at each production stage, culminating in a final 72-hour continuous operational test before shipment. This ensures every machine meets specifications 100% and delivers stable, reliable performance.
3. Professional Team and Service
Possesses a professional R&D and design team along with a skilled assembly team.
Provides customized solutions from design to production to meet the needs of various industries.
Primary Application Fields:
Aerospace, Automotive Manufacturing, Medical Devices, and High-End Industrial Equipment.
We build upon a foundation of exceptional quality and integrity in service, and we look forward to becoming your reliable partner. Please feel free to contact us for more information or to discuss custom solutions.
